BIM Object library

BIM Object library

You can now import BIM Objects directly into your Trezi projects.
  1. Load a project in Trezi

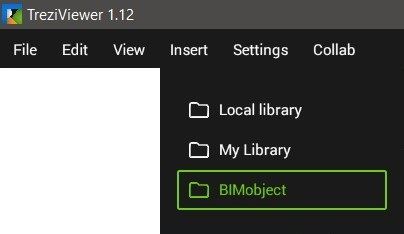

  2. In Trezi viewer goto 'Insert' Menu
  3. Select 'BIM Object'

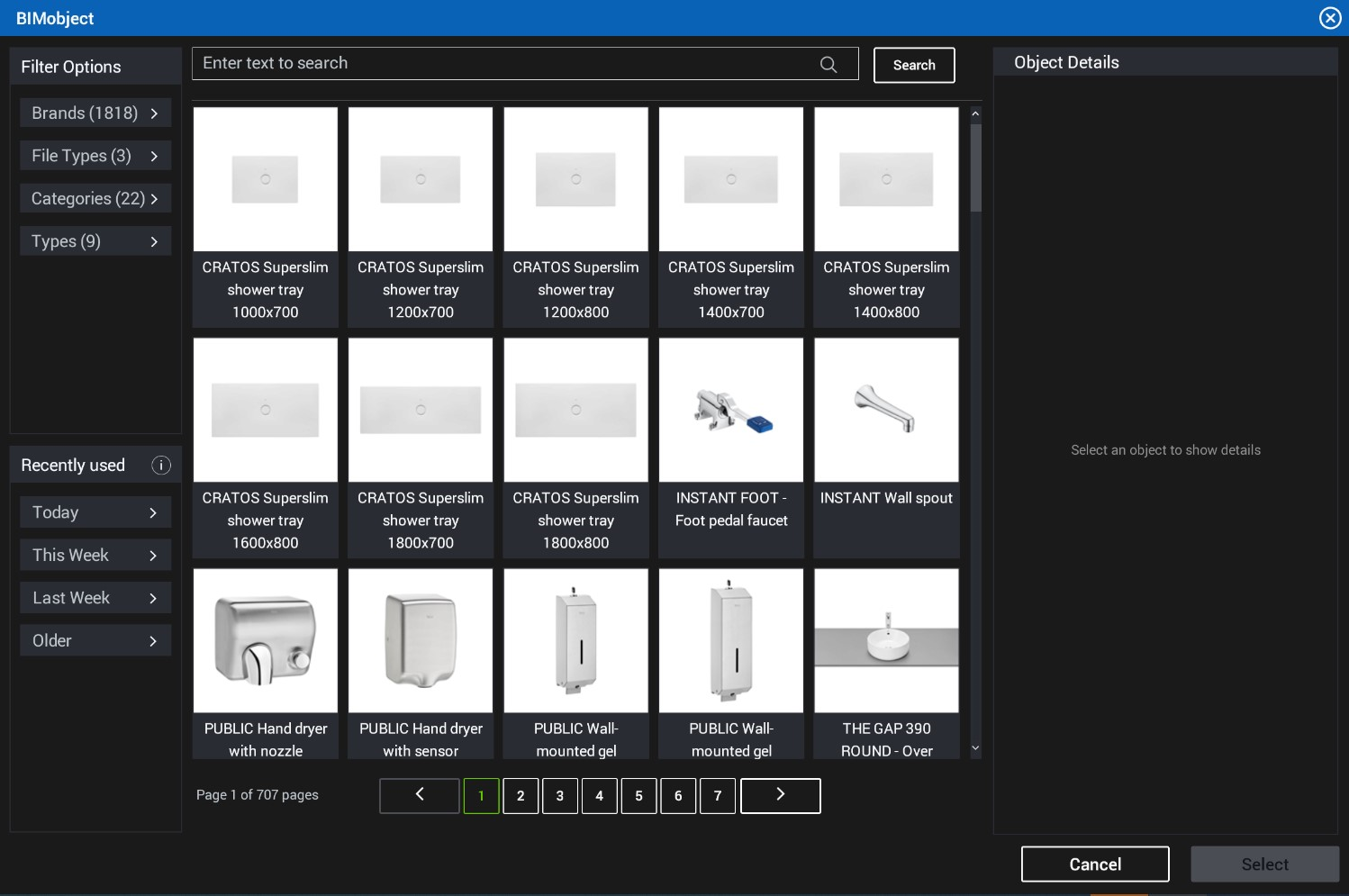

  1. You can apply different filters to search for the model based on following filters:
    1. Brands: Select the brand of choice for the model
    2. Categories: Select the category of model that you want to search e.g. Furniture, Electronics etc.
    3. File Types: Select the format of the model from here
    4. Type
  2. You can also select the models from recently used section which shows the models that have been used:
    1. Today
    2. This week
    3. Last week
    4. Older
  3. You can search for the specific model using the search bar located at the top of BIM Object window

  1. Browse to the model that you want to insert and select it

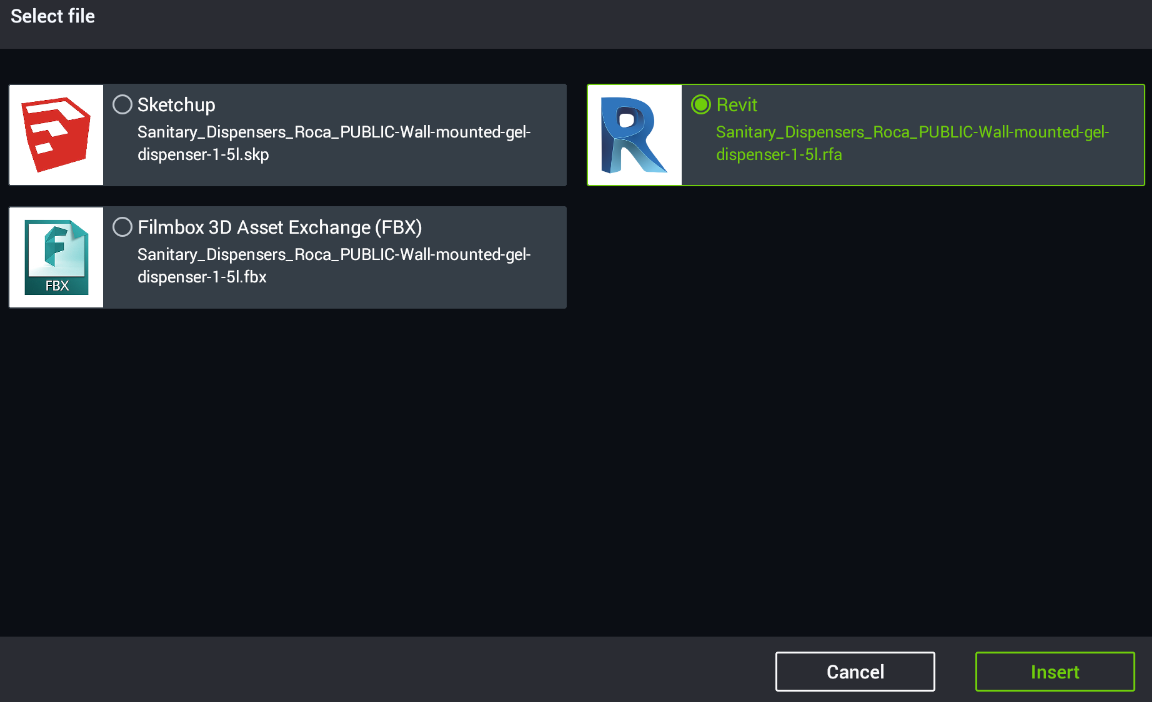

  2. Click on Select button to open the file formats available for that model
  3. Select the format (RVT, RFA, SKP, FBX)

  1. Click on Insert to start downloading the model in the project
  2. Click in the project to place the model
