Select and inspect properties of an object

Select and inspect properties of an object

Desktop Mode

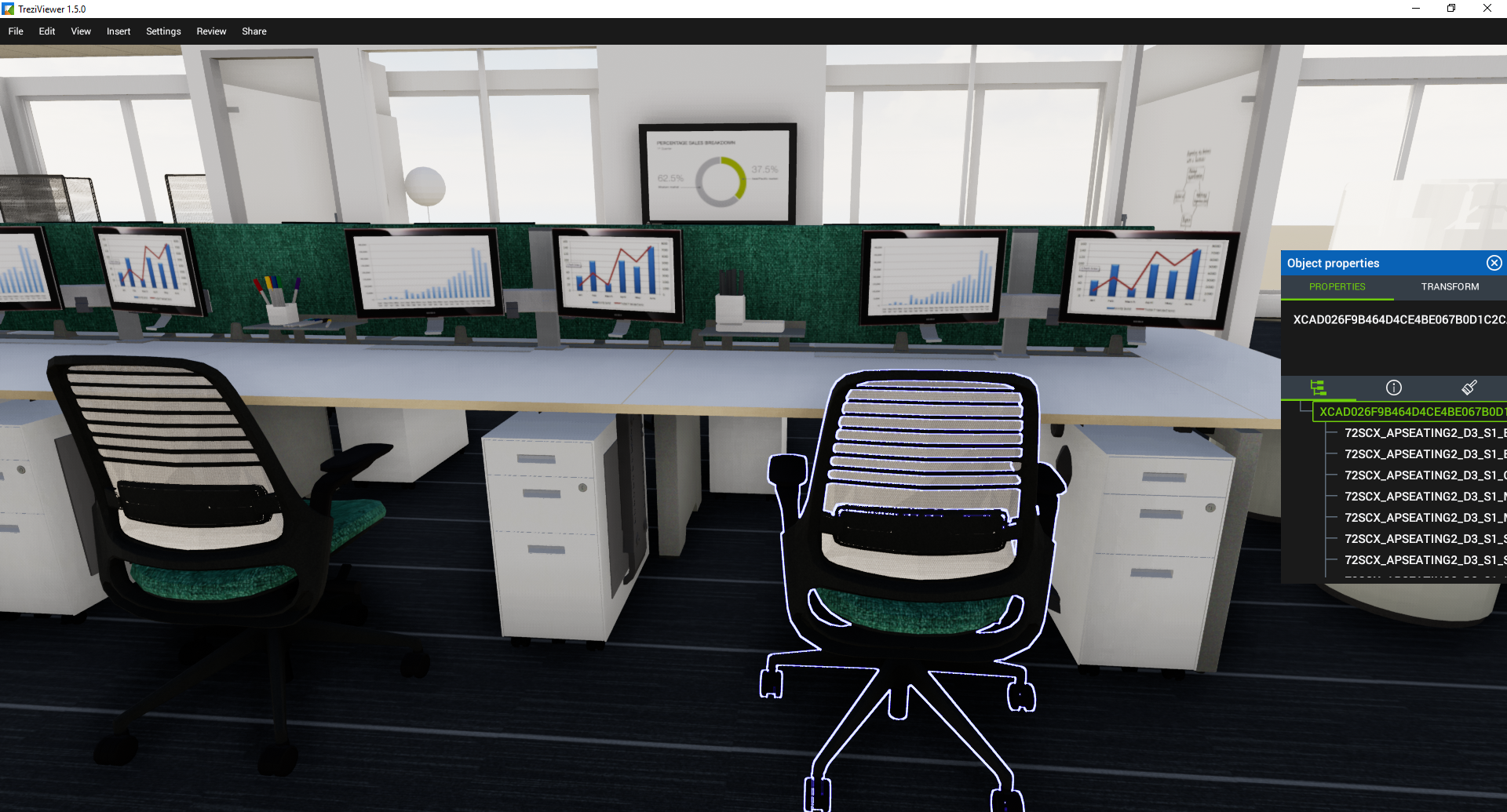

You can inspect an object by selecting the object to open Object properties.



The properties tab provides following details about the object:
  • Hierarchy of the object: It displays the hierarchy of the group which contains the selected object.

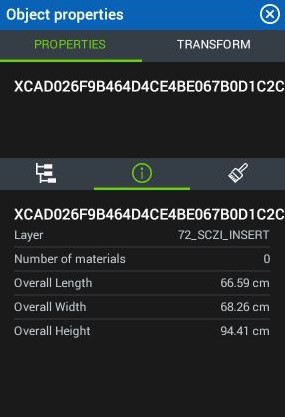

  • Dimensions of the object: This subtab displays the dimensional details of the object which includes the overall, length, width, height and number of materials applied to the object.


  • Materials applied to the object

VR Mode

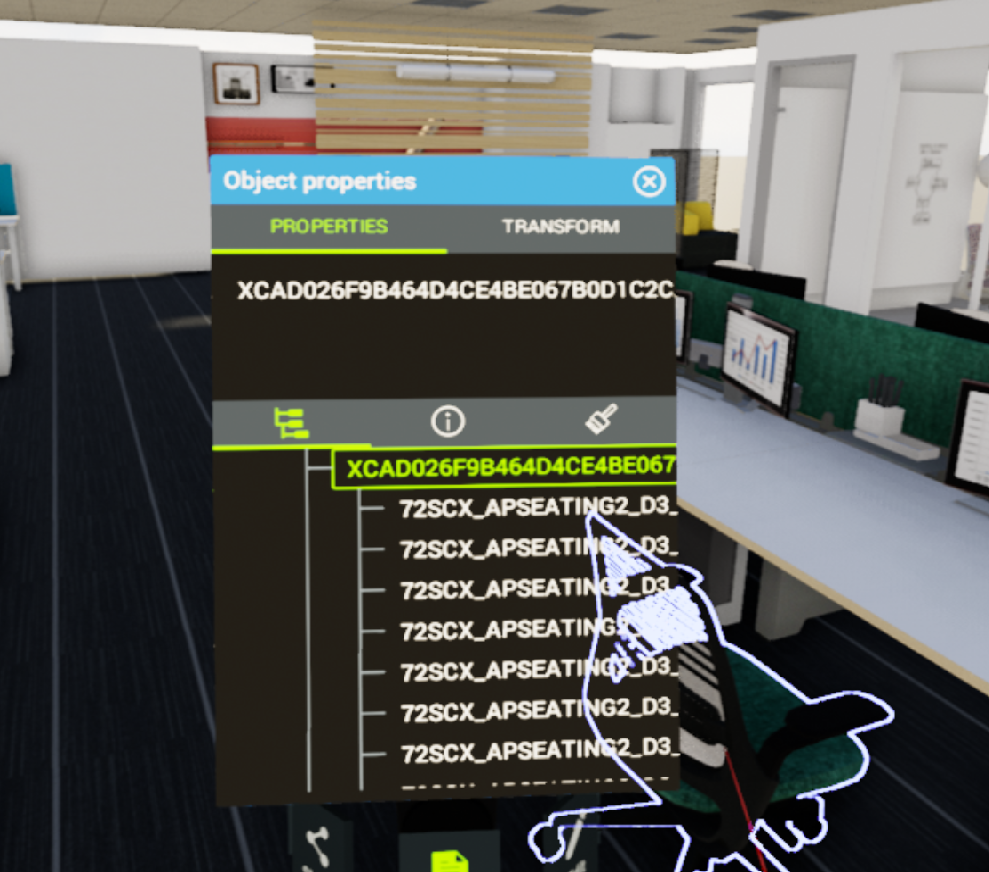

You can inspect an object in VR Mode by pointing right hand controller to the object and pressing the trigger to open Object properties.


The properties tab provides following details about the object:
  • Hierarchy of the object: It displays the hierarchy of the group which contains the selected object (as shown in above screenshot)
  • Dimensions of the object: This subtab displays the dimensional details of the object which includes the overall, length, width, height and number of materials applied to the object.

  • Materials applied to the object
