View and use layers

View and use layers

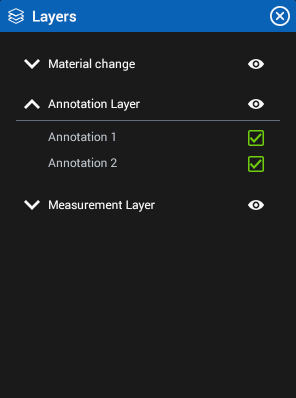

Trezi has 3 types of layers:
  1. Layers imported from Sketchup Model
  2. Annotation Layer
  3. Measurement Layer

Layers imported from Sketchup Model

Layers from the source model are maintained when the model is imported in Trezi. You can view the different layers in Trezi by turning them on/off as per your requirement. Steps to view different layers of the model are mentioned below:
  • Import the model in Trezi

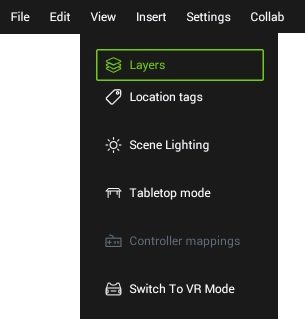

  • Goto View menu and select Layers option

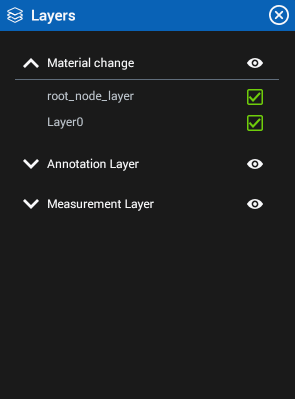

  • All the layers available for the model will be displayed on the screen along with their current status.
    • If the checkbox is checked then the layer is active and the models in this layer are visible.
    • If the checkbox is unchecked then the layer is hidden and the models in this layer are hidden.

  • Check/Uncheck the checkbox against the name of the layer to toggle between different layers created in the source model.

Annotation Layer

The annotations added to the model are listed under this. You can turn any annotation on/off by checking/unchecking the checkbox against each annotation.


Measurement Layer

All the measurements done in the model are listed under this. You can turn any measurement on/off by checking/unchecking the checkbox.


Video Tutorial
