Use the Exterior rendering mode

Use the Exterior rendering mode

Exterior rendering mode requires Trezi release 1.8 or newer

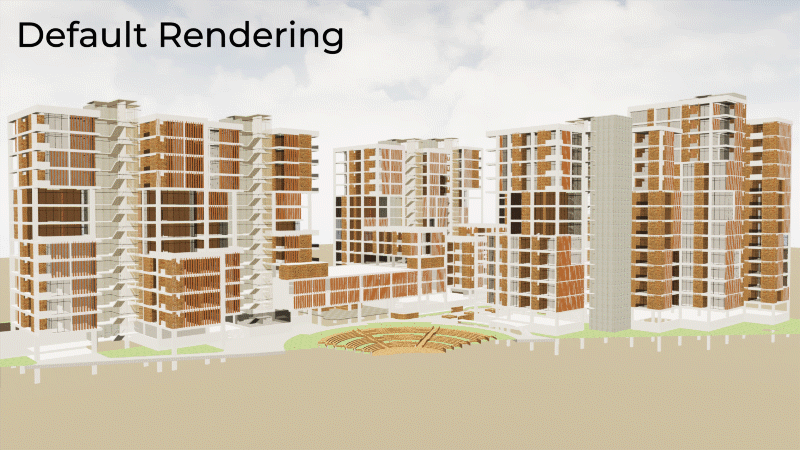

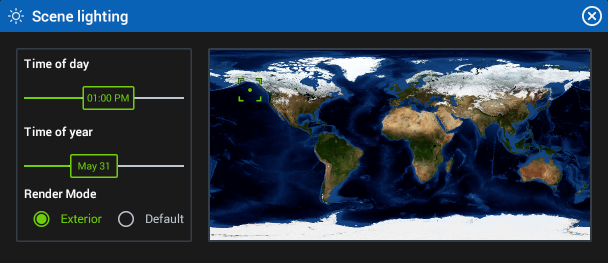

Exterior rendering mode significantly improves the rendering quality for exterior scenes by adjusting and improving various rendering properties. To enable this, open 'Scene Lighting' from the View menu and select 'Exterior' under 'Rendering mode' section.



Here are a couple of important points to note:
  1. Exterior mode is not the default rendering mode, this has to be manually enabled
  2. Exterior mode is more demanding in terms of performance, and you may notice degraded performance on models with loads of components
  3. Because of the performance constraints, Exterior mode can not be enabled while in VR mode
  4. Models with interiors should still use the Interior rendering mode as the exterior rendering mode is tweaked for exteriors and will not look good for interior environments
