Navigate around the world in VR mode

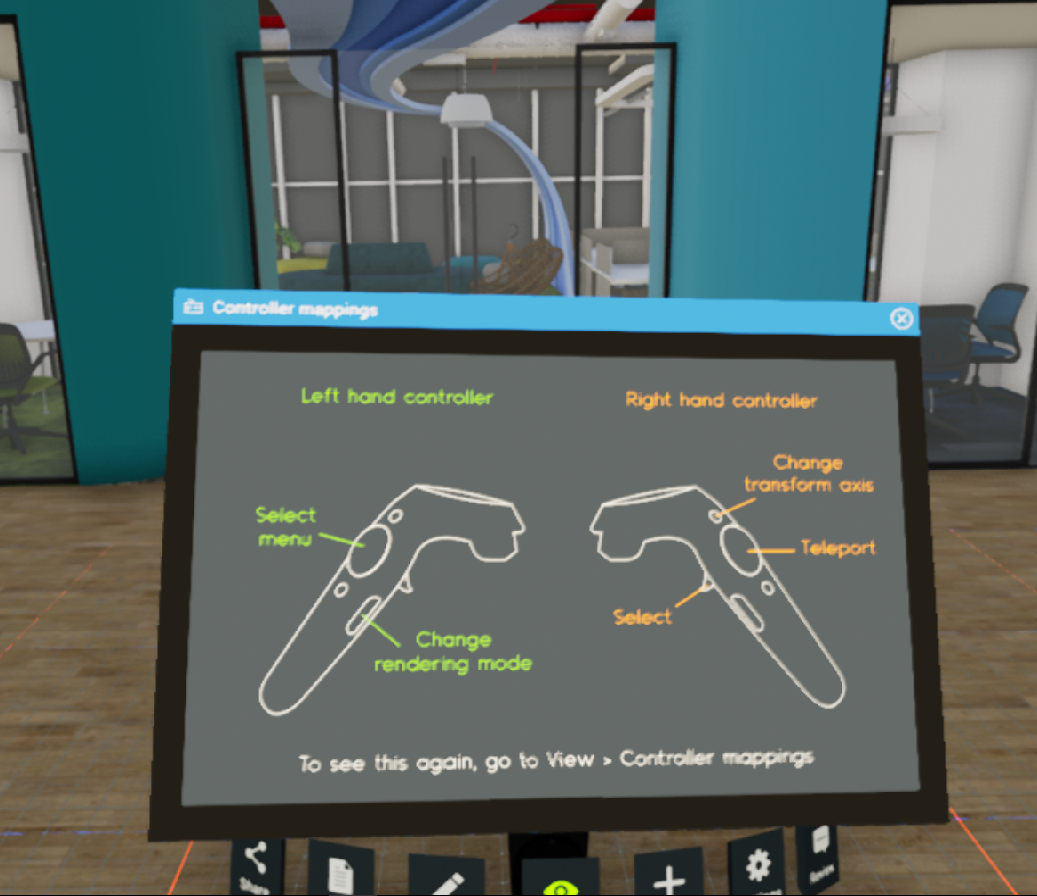

To use Trezi in VR Mode, you will need two controllers:
Oculus Rift/Rift S
HTC Vive
- Right Hand Controller
- Left Hand Controller
Right Hand Controller
This controller is used for accessing the following options
- Teleportation
- To teleport from one location to another you can point the controller to the floor, press the trackpad and release the trackpad.
- Change Transform Axis
- This function is activated when you have selected an object. You can choose the axis along which you want to move the selected object by clicking on this button
- You can also use this button to take a snapshot when the 'Take 2D Screenshot' is selected from Share Menu.
- Select
- This button is used to select any object in the model or menu item.
- To select any object, point the red pointer to the object and press this button to select the object/group.
- To select any menu item, point the pointer to the menu item and press the select button to activate it.
- This button is also used to place nodes/keys while creating a video walkthrough/360 pano tour.
Left Hand Controller
This controller is used for accessing the following options
- Select Menu
- You can traverse through the different menu by clicking the left/right side of the trackpad on the left controller.
- All the menu/sub-menu items are displayed on the left controller
- Change Rendering Mode
- You can change the rendering modes by clicking the grip button on the left controller.
