My Library

You can upload your own collection of models to your Trezi account and then insert them in any of the project created in Trezi.

Formats supported for My Library are: Sketchup, Revit, FBX

To use My Library follow these steps:

1. Setup you library by uploading your models to Trezi cloud

2. Use your library in Trezi project


Upload your models to Trezi cloud

1. Login to your Trezi account by entering your email and password or click here to goto login page

2. You will land on 'My Library' page in your Trezi account

3. Click on 'Add New File' to reveal 3 options:

1. Create Folder

2. File Upload

3. Folder Upload


Create Folder

It allows you to create a folder in which you can upload the models

1. Click on 'Create Folder'

2. Enter the name of the folder

3. Click 'Save' button to create the folder


Upload File

It allows you to upload your model to your Trezi account.

1. Click on 'File Upload'

2. Select the file you want to upload

3. Click on 'Open' button


Folder Upload

It is same as above functionality but instead of a single file, you can upload the complete folder.

1. Click on 'Folder Upload'

2. Select the folder you want to upload

3. Click on 'Upload' button


Once the models are uploaded into your Trezi account, you can import them in your Trezi projects.

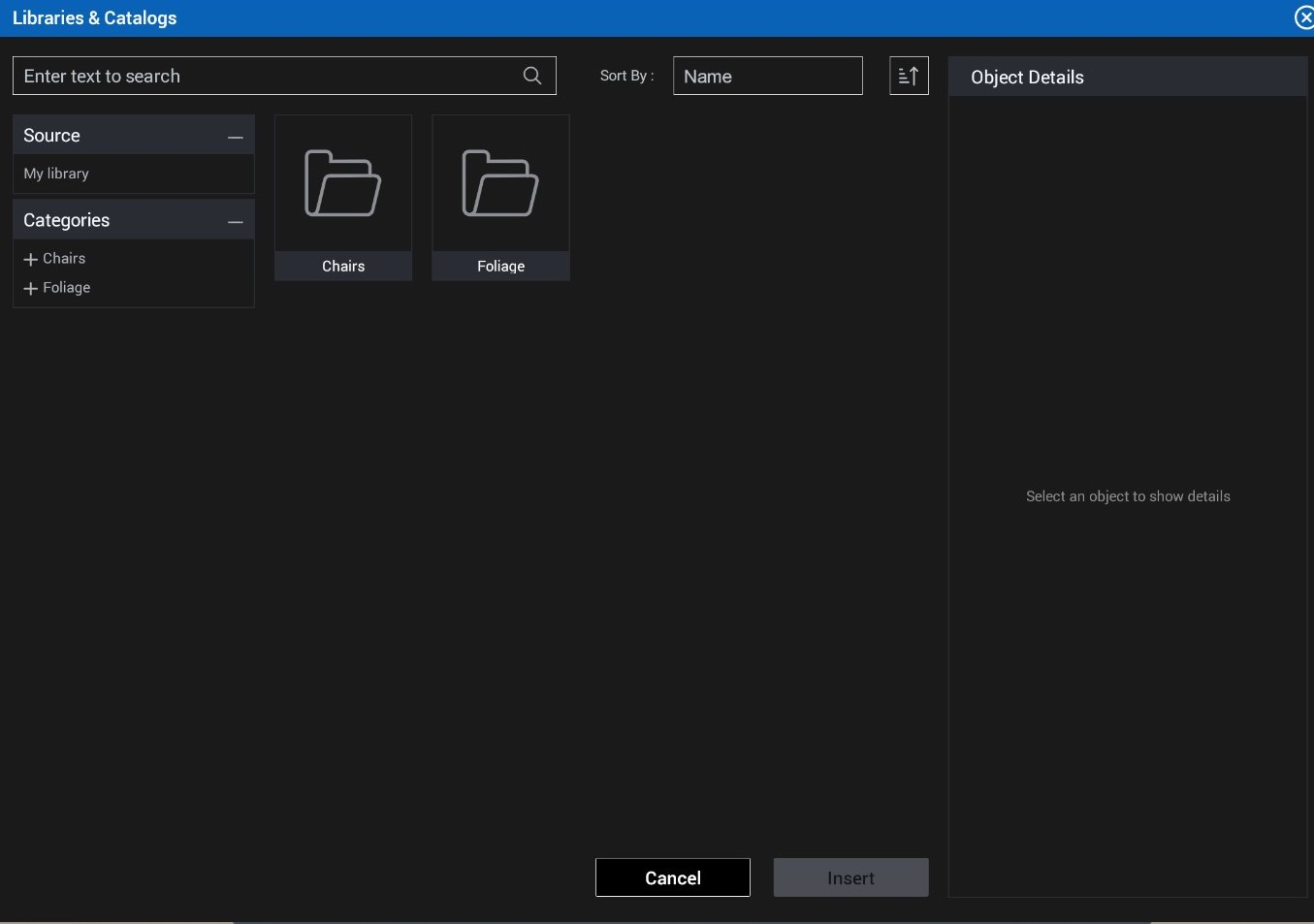

Insert the models in Trezi project

You can insert the models in your Trezi project from your library by following below steps:

1. Load a project in Trezi

2. In Trezi viewer goto 'Insert' Menu

3. Select 'My Library'

4. Browse to the model that you want to insert and select it

5. Click on Insert to start downloading the model in the project

6. Click in the project to place the model
