Insert an object from the asset library

Insert an object from the asset library

You can insert an object from the asset library of Trezi by following steps mentioned below:

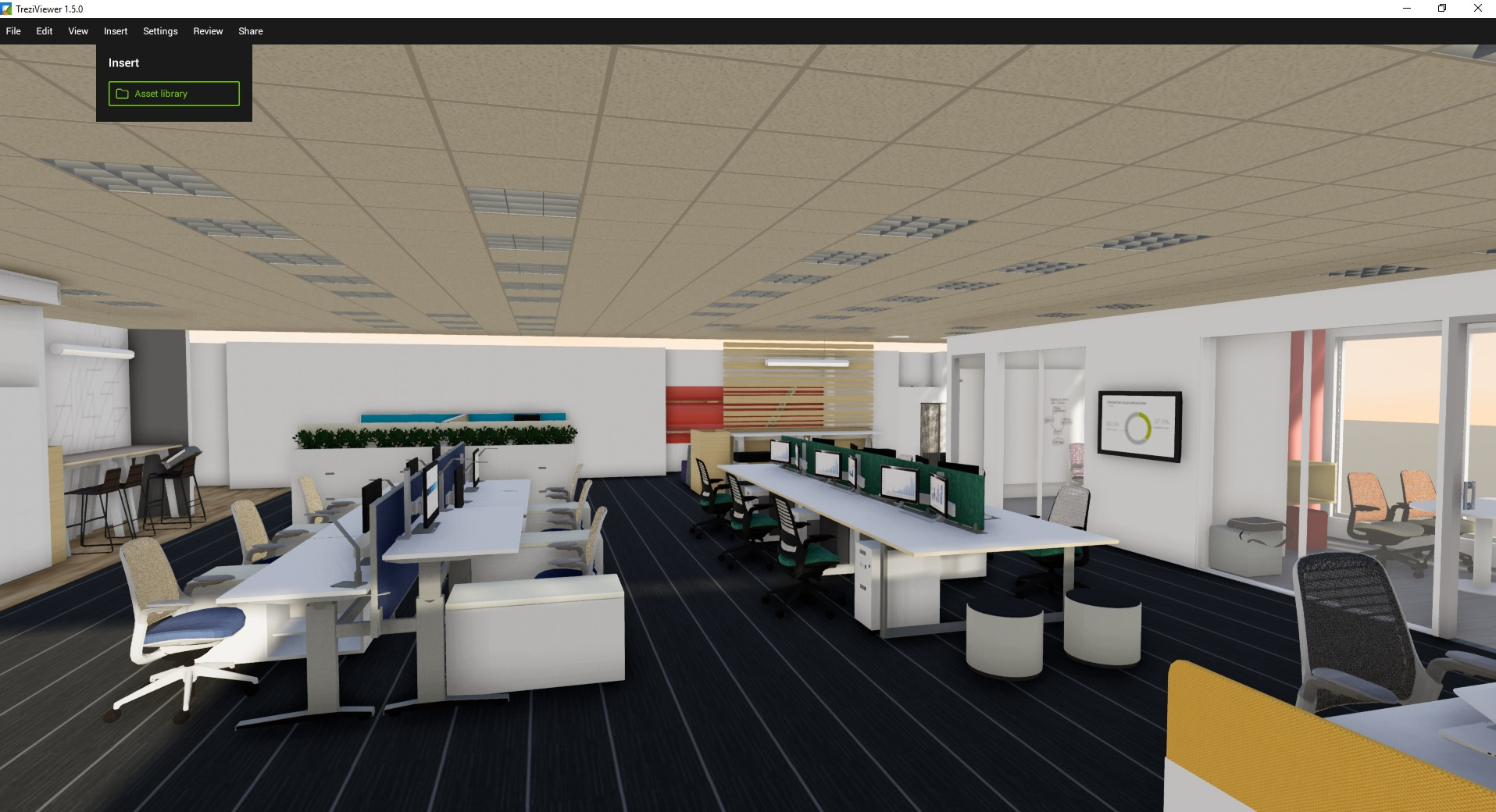

  • After opening the model goto Insert Menu and select Asset Library option

  • Use the classification on the left panel to see the filtered results in the right panel.
  • To see all the available models scroll on the right panel
  • Click on any object to select it

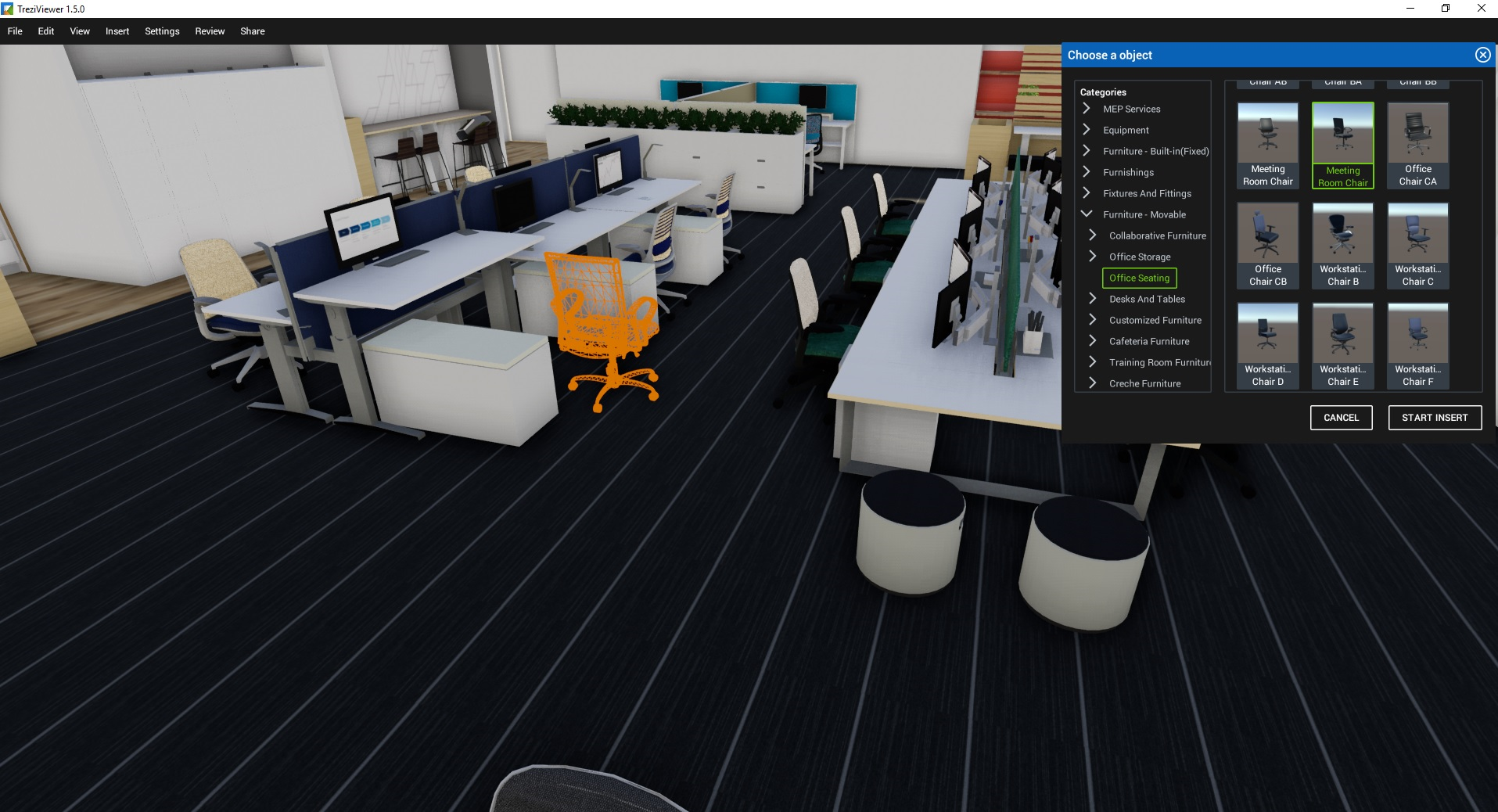

  • Click on Start Insert button. Object is displayed on the screen in wireframe mode. You can place the object at any location by moving pointer to the desired location and clicking. The wireframe mode will turn off and complete object will be displayed on screen now. You can click multiple times on the screen to place multiple objects on the screen

  • Repeat above steps to add other objects.
  • Once all the required number of objects are added then close the 'Choose an object' window

Video Tutorial

Desktop Mode
