View and use Location Tags

View and use Location Tags

Accessing Location tags

Scenes from a SketchUp model are imported as location tags in Trezi. You can easy jump from one location to another by simply selecting the destination location as per the scenes defined in the source model.
To traverse to various locations in the model, follow the below mentioned steps:
  • Import the model in Trezi

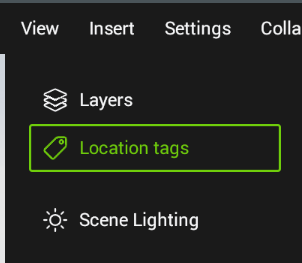

  • Go to View menu and select Location Tags option

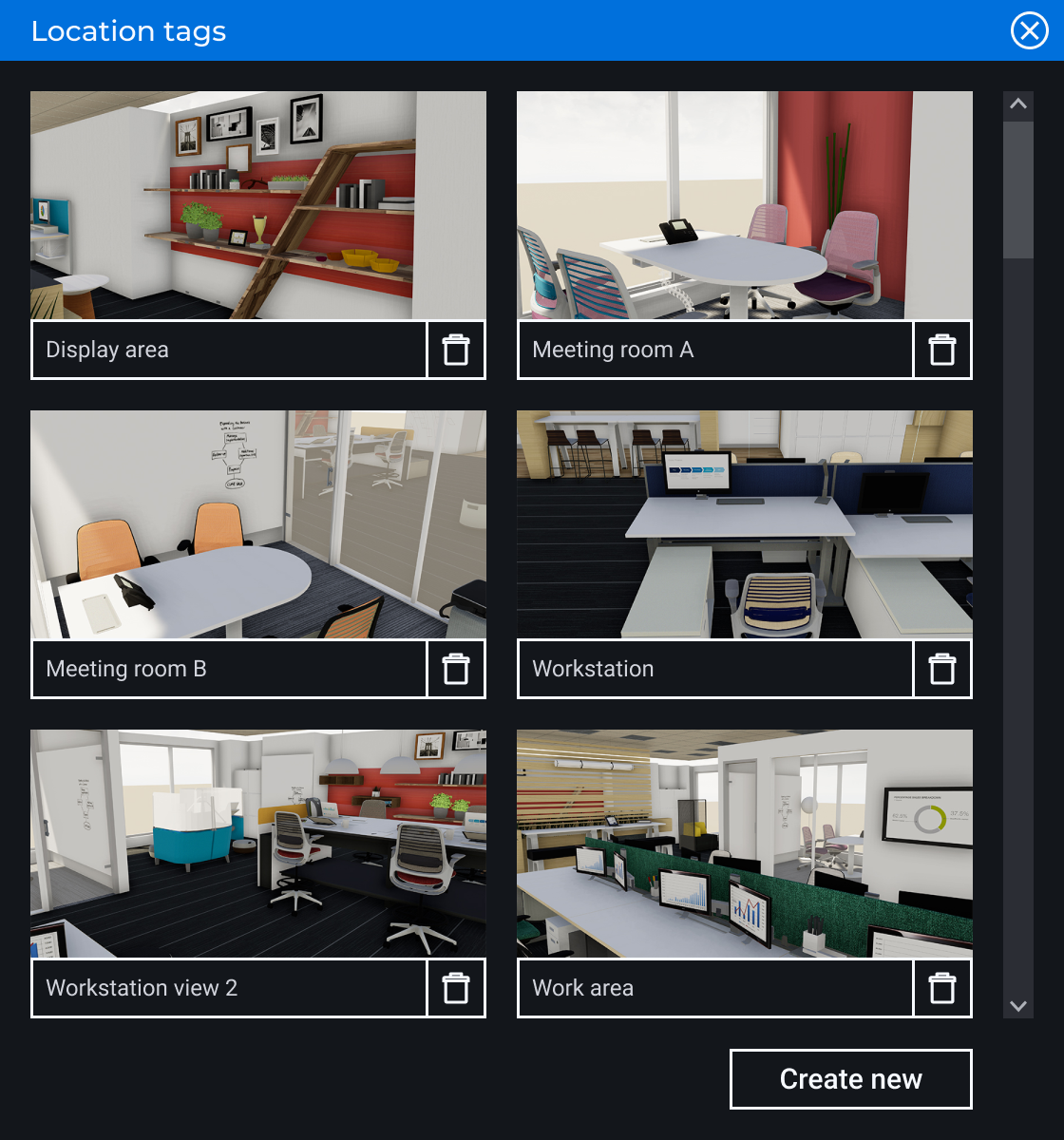

  • List of all the location tags available in the model will be displayed on the screen.

  • Click on a location tag to jump to that location
  • Similarly, by following these steps, you can traverse from one location to another.

Creating and deleting location tags

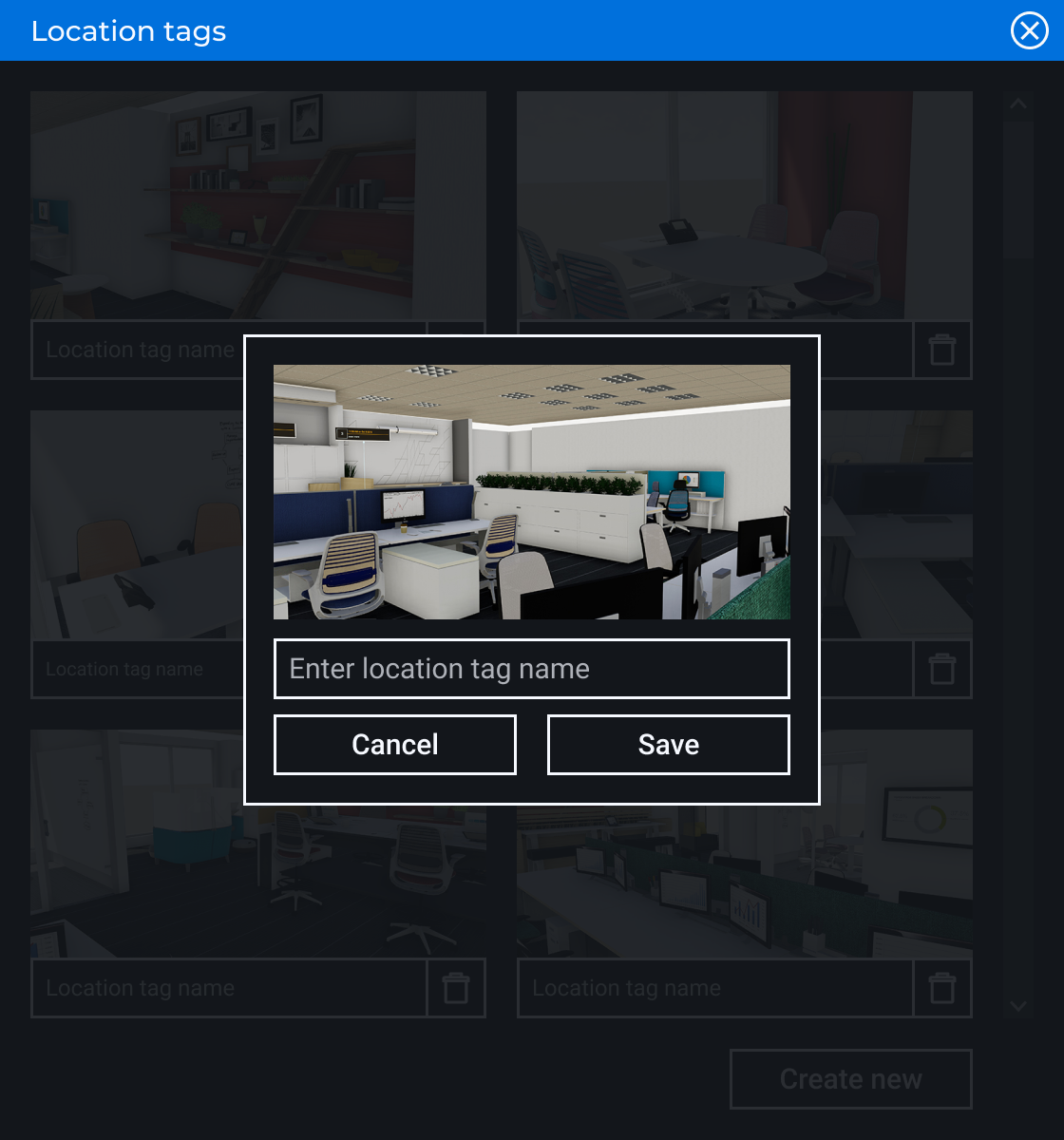

  • You can also create new location tags by clicking the 'Create new' button. This will create a new location tag with the current view as the camera position. Hit the save button to confirm and create the location tag.

  • You can also delete an existing location tag by clicking the delete icon next to the name of the location tag.
